BSP/BOP Series Thick Film Tube Resistors, High Voltage Resistors

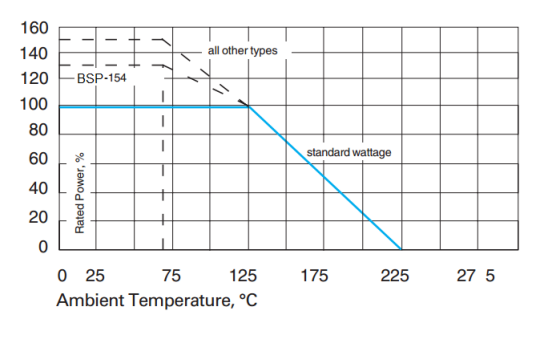

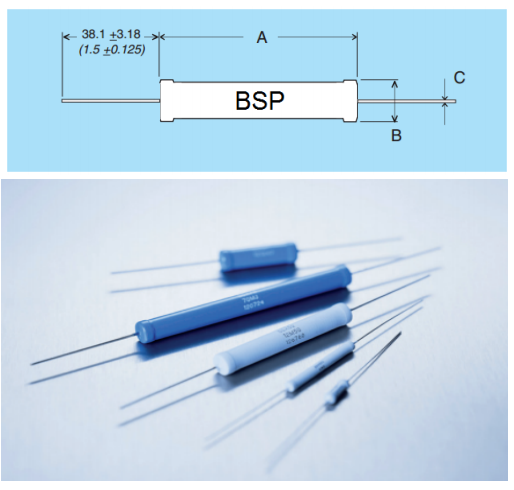

Tube type (thick film, non inductive design)high voltage resistor. BSP series use 7.0mm diameter ceramic body BOP series use 3.5mm diameter ceramic body For general purpose, max working temp. to 225°C.
General Details
BSP/BOP Series Thick Film Tube Resistors, High Voltage Resistor

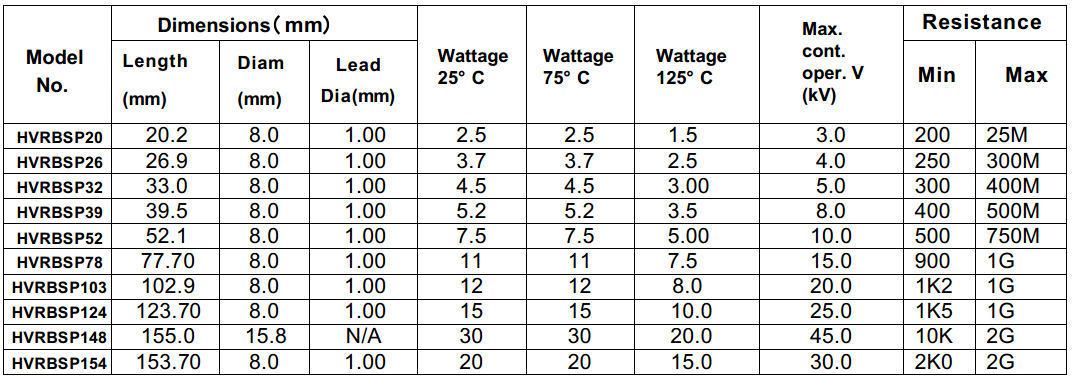

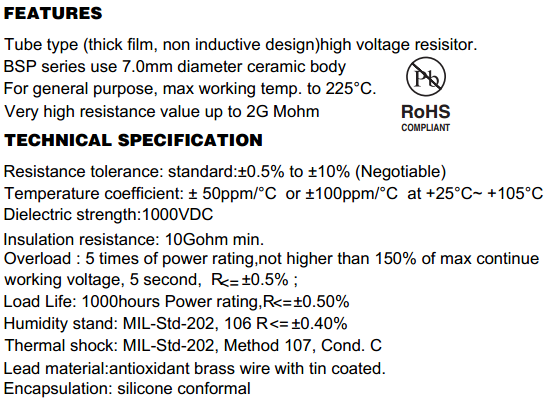

Technical Info
Inquiry Form
Contact form description text
Documents
